Built for real-world applications

Standard on all TORBAL® Force Gauges: Excellent battery life, ergonomic design, auto-rotate display, easy PC connectivity, large memory capacity.

Starting at only
499

Compare Products
fb thor

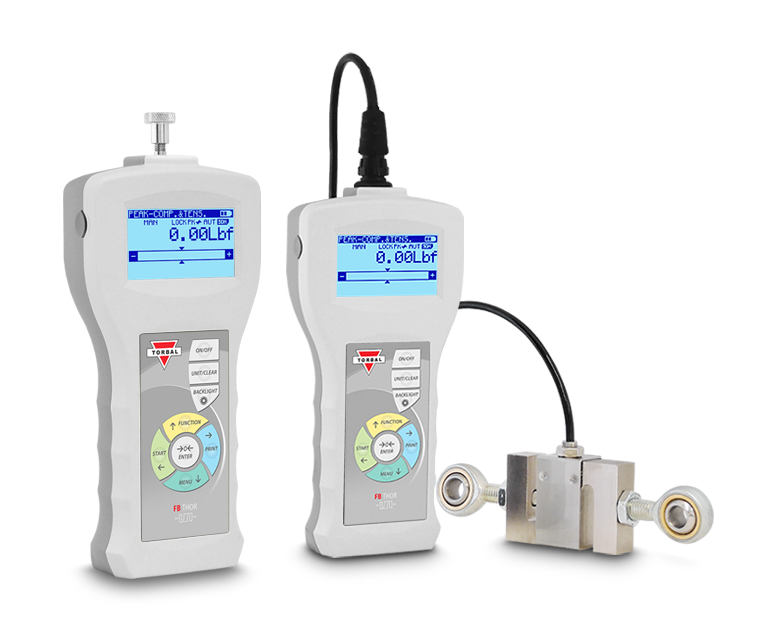

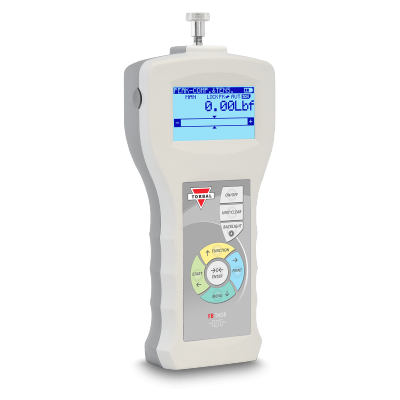

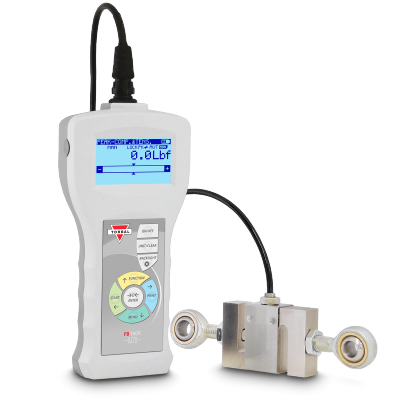

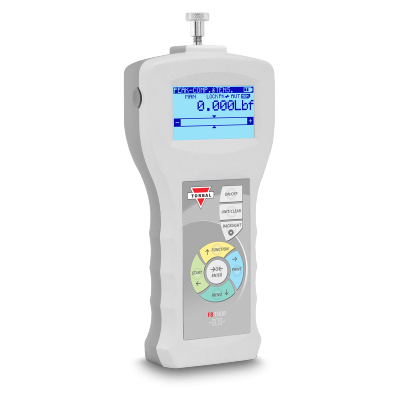

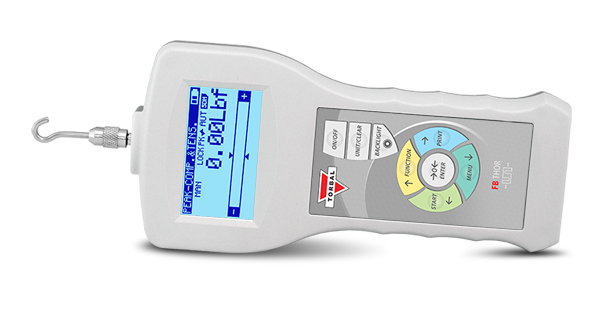

FB THOR Precision

The FB THOR offers affordability and scalability for everyday force measurement use. The FB is loaded with essential features and functions which make this force gauge ideal for virtually any application which requires tension and compression force measurement.

•    microSD memory card (included)
•    USB and RS232 interface
•    Backlit Auto-rotate Display
•    Ergonomic Rugged Housing
•    6 modes and application including Pass /Fail
•    14 features and functions
•    7 units of measure

Learn more



FB5

1lbF x 0.0002lbF

5N x 0.001N
$ 499.00
Details

FB10

2lbF x 0.0005lbF

10N x 0.002N
$ 549.00
Details

FB20

4lbF x 0.001lbF

20N x 0.005N
$ 569.00
Details

FB50

10lbF x 0.002lbF

50N x 0.01N
$ 579.00
Details

FB200

40lbF x 0.01lbF

200N x 0.05N
$ 590.00
Details

FB500

100lbf x 0.02 lbf

500N x 0.1N
$ 599.00
Details

FB1k

200lbf x 0.05lbf

1kN x 0.2N
$ 699.00
Details

FB2k

400lbF x 0.1lbF

2kN x 0.5N
$ 799.00
Details

FB5k

1,000lbF x 0.2lbF

5kN x 1N
$ 849.00
Details

FB10k

2,000lbF x 0.5lbF

10kN x 2N
$ 899.00
Details

FB20k

4,000lbF x 1lbF

20kN x 5N
$ 1099.00
Details

FB50k

10,000lbF x 2lbF

50kN x 10N
$ 1199.00
Details
fc zeus

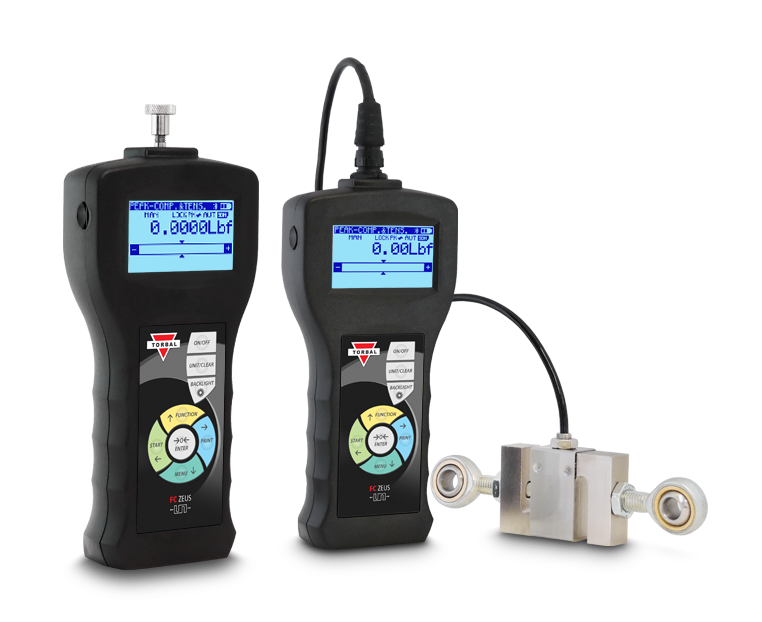

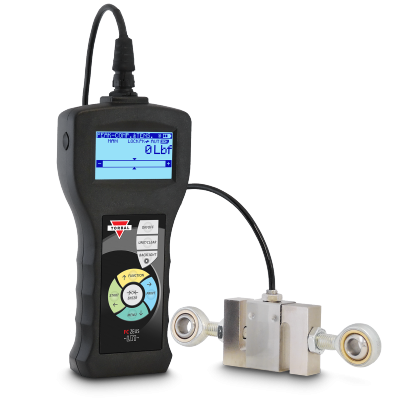

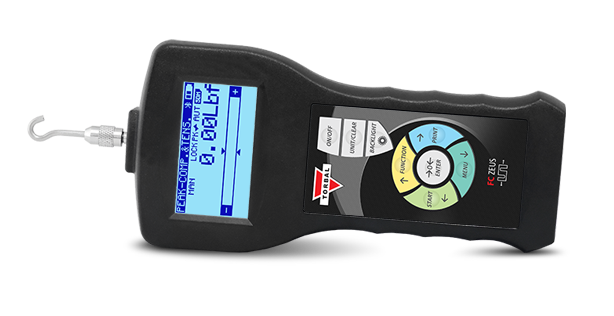

FC ZEUS Precision PRO

The FC ZEUS is ideal for advanced tension and compression applications which require ultimate speed and precision. The FC is packed with features and functions that increase productivity during force measurement and testing.

•    Built-in wireless
•    Analog input output
•    1000 Hz data capture
•    Interchangeable load-cell
•    USB, RS232, and microSD memory card (included)
•    Backlit auto-rotate display
•    Ergonomic rugged housing
•    6 modes and application including Pass / Fail
•    17 features and functions
•    7 units of measure

Learn more

FC5

1lbFx 0.0002lbF

5N x 0.001N
$ 599.00
Details

FC10

2lbF x 0.0005lbF

10N x 0.002N
$ 669.00
Details

FC20

4lbF x 0.001lbF

20N x 0.005N
$ 679.00
Details

FC50

10lbF x 0.002lbF

50N x 0.01N
$ 699.00
Details

FC200

40lbFx 0.01lbF

200N x 0.05N
$ 749.00
Details

FC500

100lbF x 0.02 lbF

500N x 0.1N
$ 799.00
Details

FC1k

200lbF x 0.05lbF

1kN x 0.2N
$ 999.00
Details

FC2k

400lbF x 0.1lbF

2kN x 0.5N
$ 1049.00
Details

FC5k

1,000lbF x 0.2lbF

5kN x 1N
$ 1099.00
Details

FC10k

2,000lbF x 0.5lbF

10kN x 2N
$ 1149.00
Details

FC20k

4,000lbF x 1lbF

20kN x 5N
$ 1299.00
Details

FC50k

10,000lbF x 2lbF

50kN x 10N
$ 1399.00
Details

compare our force gauges



FC ZEUS


USB Port

microSD Card

RS232 Interface

17 Features

Analytics

Stats

2.75" LCD

Intuitive Keypad

Ergonomic Design

Auto-Rotate LCD

1000Hz Sampling

Multi Load-Cell

Built-in Wireless

Analog Port

FC THOR


USB Port

microSD Card

RS232 Interface

17 Features

Analytics

Stats

2.75" LCD

Intuitive Keypad

Ergonomic Design

Auto-Rotate LCD



full spec comparison



PERFORMANCE
Accuracy Accuracy
±0.1% Full Scale ±0.2% Full Scale
Sampling Rate Sampling Rate
1000Hz 80Hz
Overload Overload
200% Full Scale 200% Full Scale
Battery Operating Time Battery Operating Time
29h (LCD Backlight OFF, BT Wirless OFF) | 25h (LCD Backlight ON, BT Wirless OFF) 32h (LCD Backlight OFF) | 27h (LCD Backlight ON)
INTERFACE
Wireless Wireless
YES NO
USB USB
YES YES
RS232 RS232
YES YES
Analog Input / Output Analog Input / Output
YES NO
FEATURES
Peak Mode Peak Mode
YES YES
Multi-Peak Mode Multi-Peak Mode
YES YES
Standard / Real Time Mode Standard / Real Time Mode
YES YES
Fill Meter Fill Meter
YES YES
Interchangeable Load-Cell Interchangeable Load-Cell
YES NO
INCLUDED WITH THE FORCE GAUGE
Wireless PC Dongle Receiver Wireless PC Dongle Receiver
YES NO
microSD Memory Card microSD Memory Card
YES YES
Rechargeable Batteries Rechargeable Batteries
YES YES
Attachments Attachments
YES (N/A "k" models) YES (N/A "k" models)
RS232 Cable RS232 Cable
YES YES
Analog Cable Analog Cable
YES NO
Warranty Warranty
24 Months 36 Months
