STV Test Stand
Manual

Mechanical


SKU: 9875
Quick overwiev

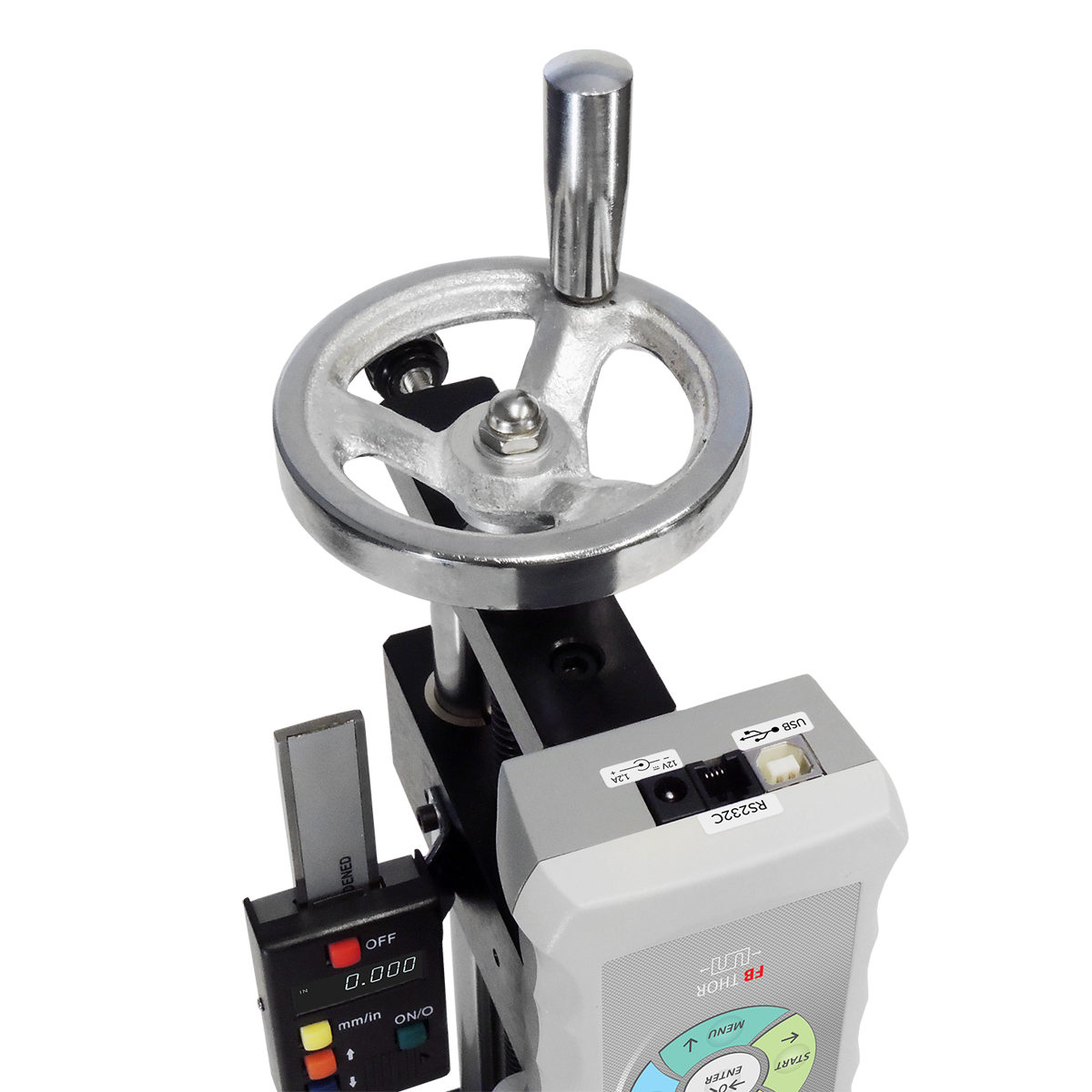

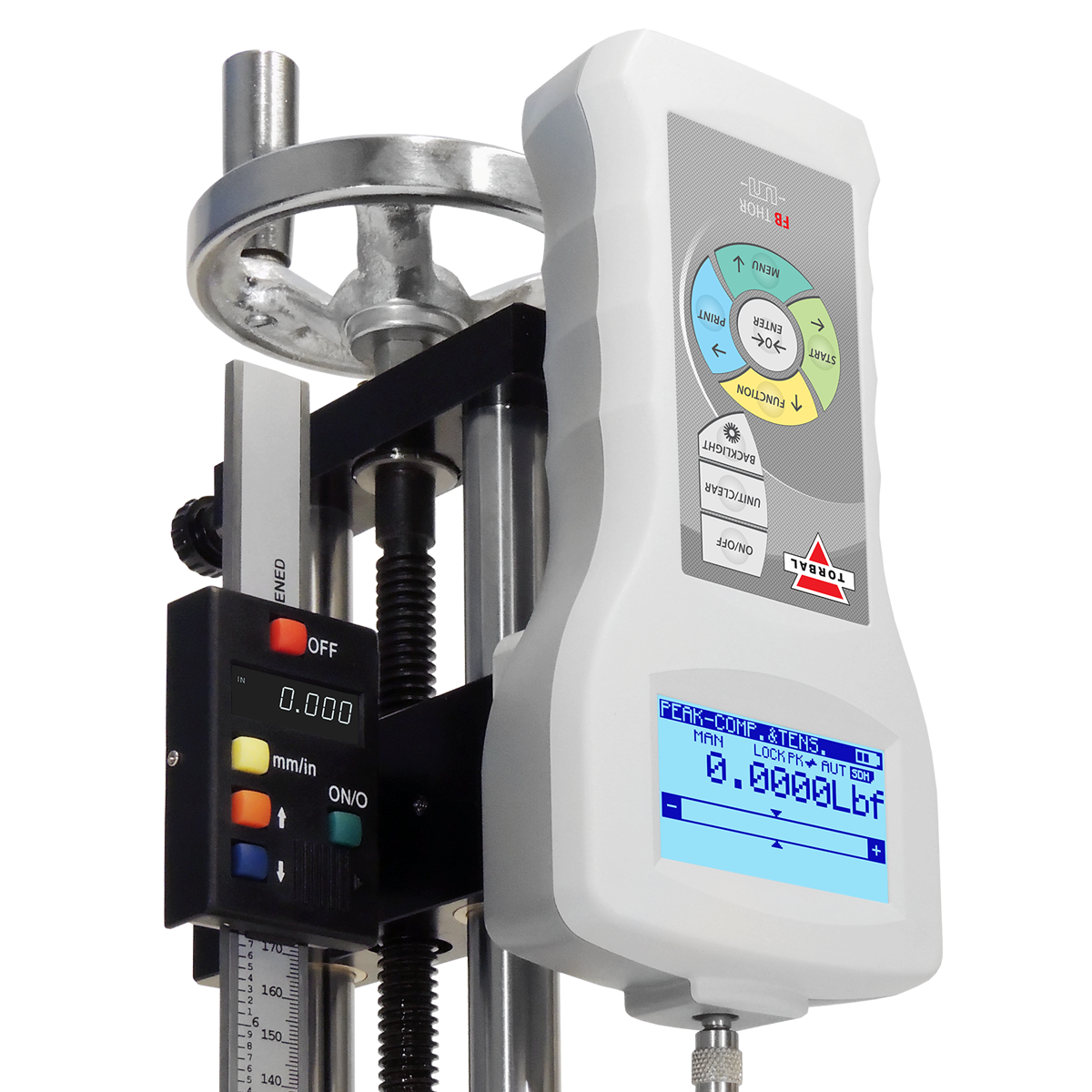

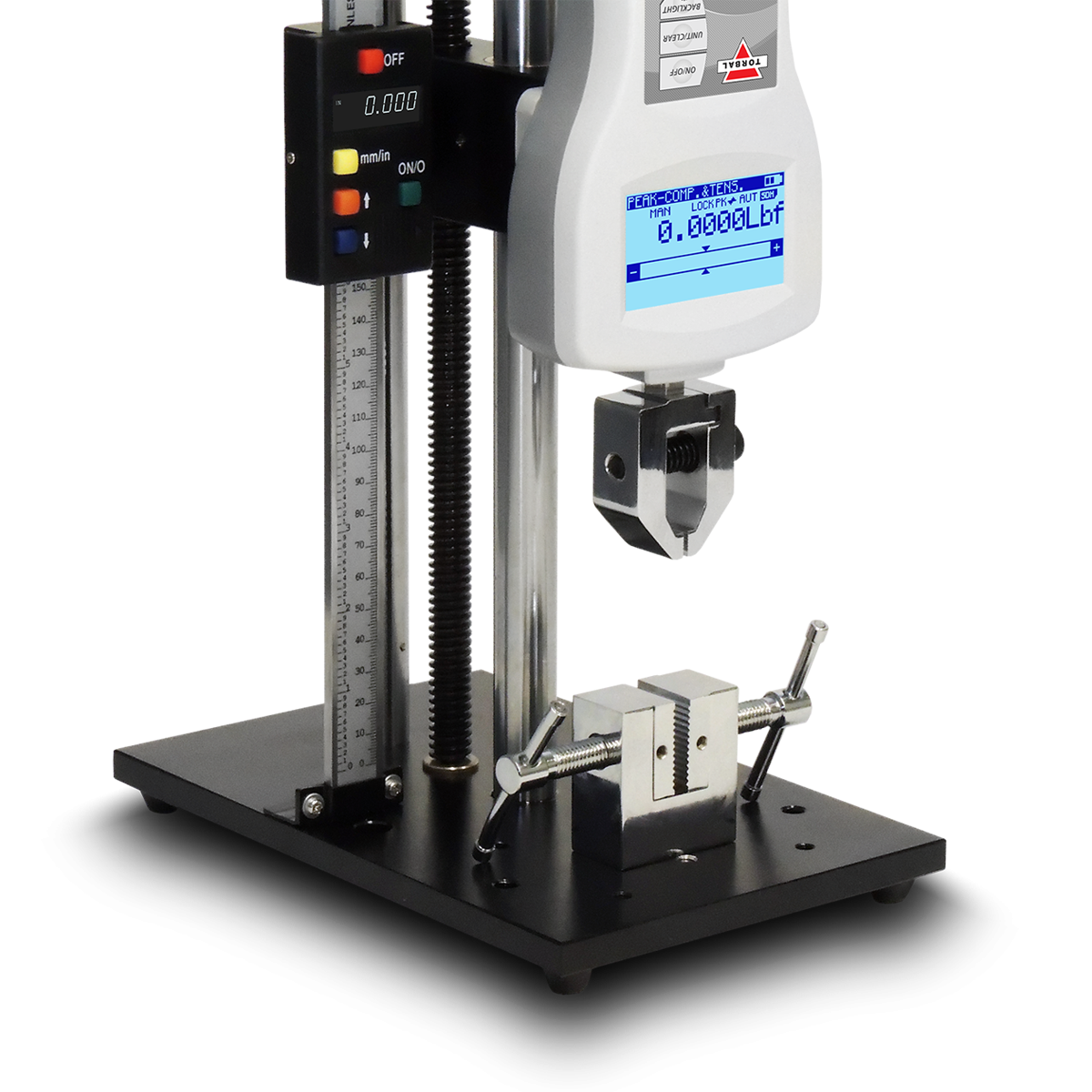

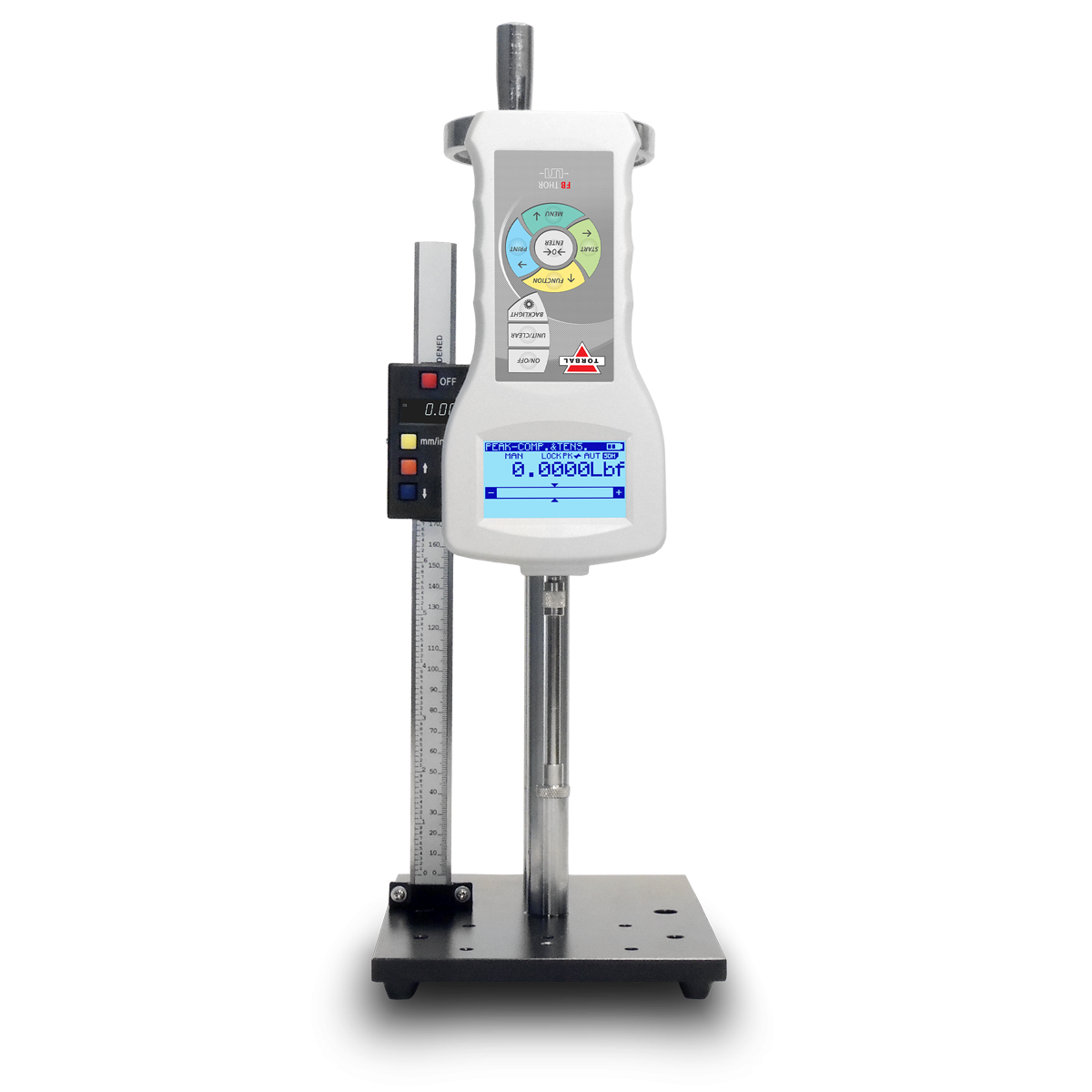

The STV testing stand is ideal for making precise tension and compression measurements. Attaching the force gauge to the stand is fast and simple. The stand is equipped with a digital caliper as well as a precision turning knob which creates a 3mm travel distance per rotation. (Force Gauge Sold Separately)

Read more

Quantity
- +

Free Shipping

$749.00

$0.00


Specifications

Travel Distance per turn 0.12” | 3mm
Maximum travel length 13” | 335mm
Maximum force 100lbF | 500N
Knob Diameter 4.72” | 120mm

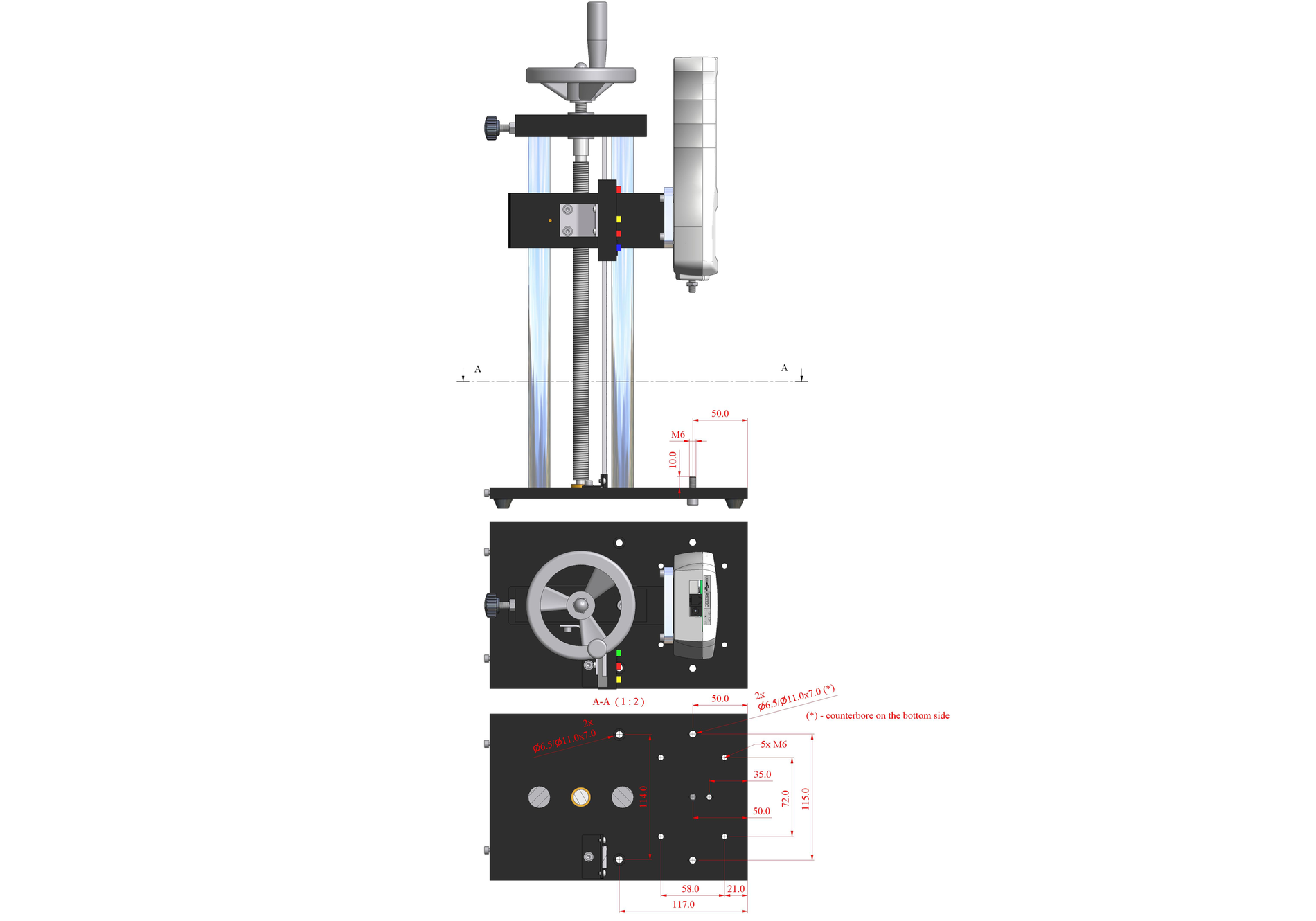

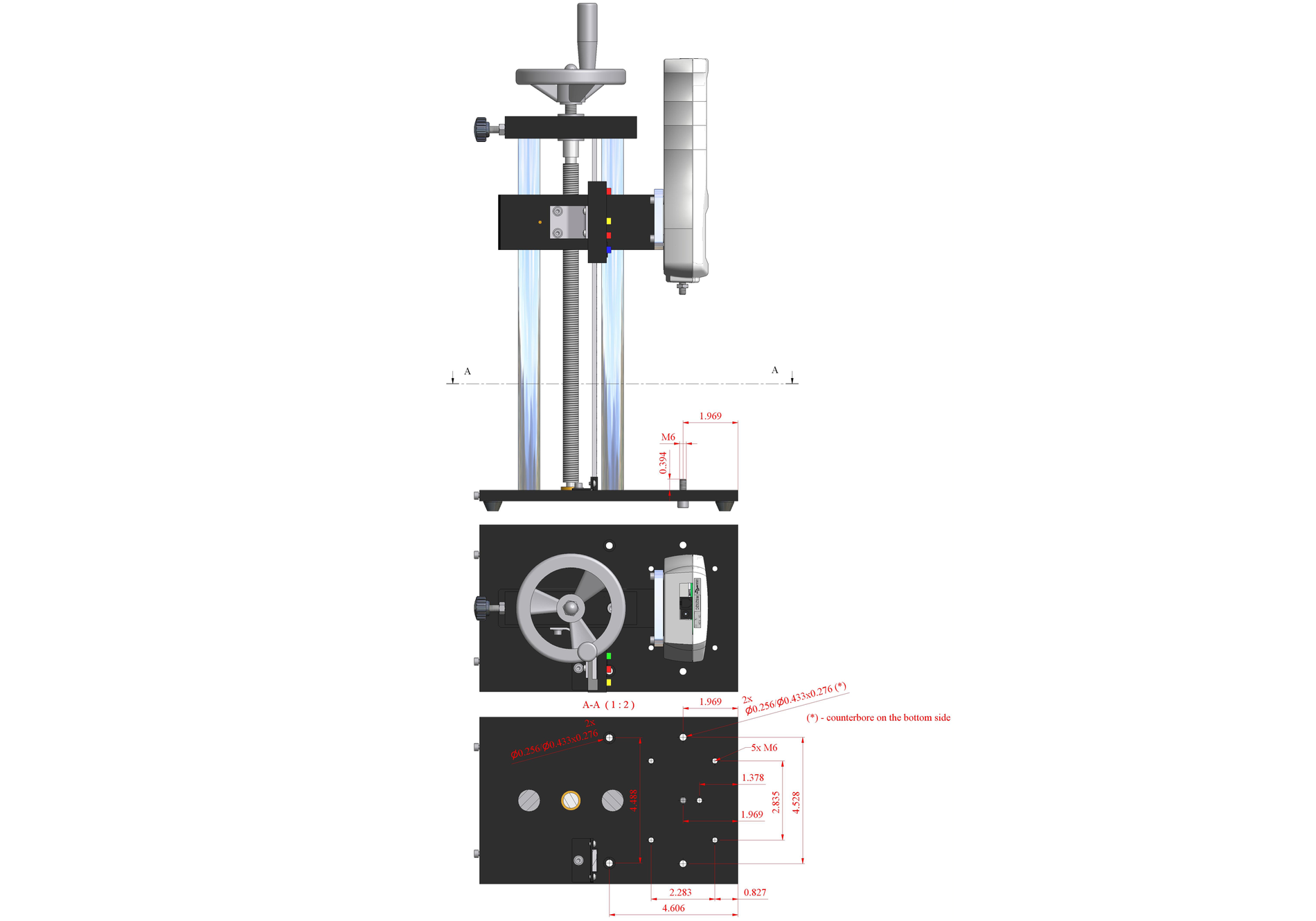

Base Plate Dimensions 8.27” x 5.04” | 210mm x 128mm
Digital Caliper mm | in

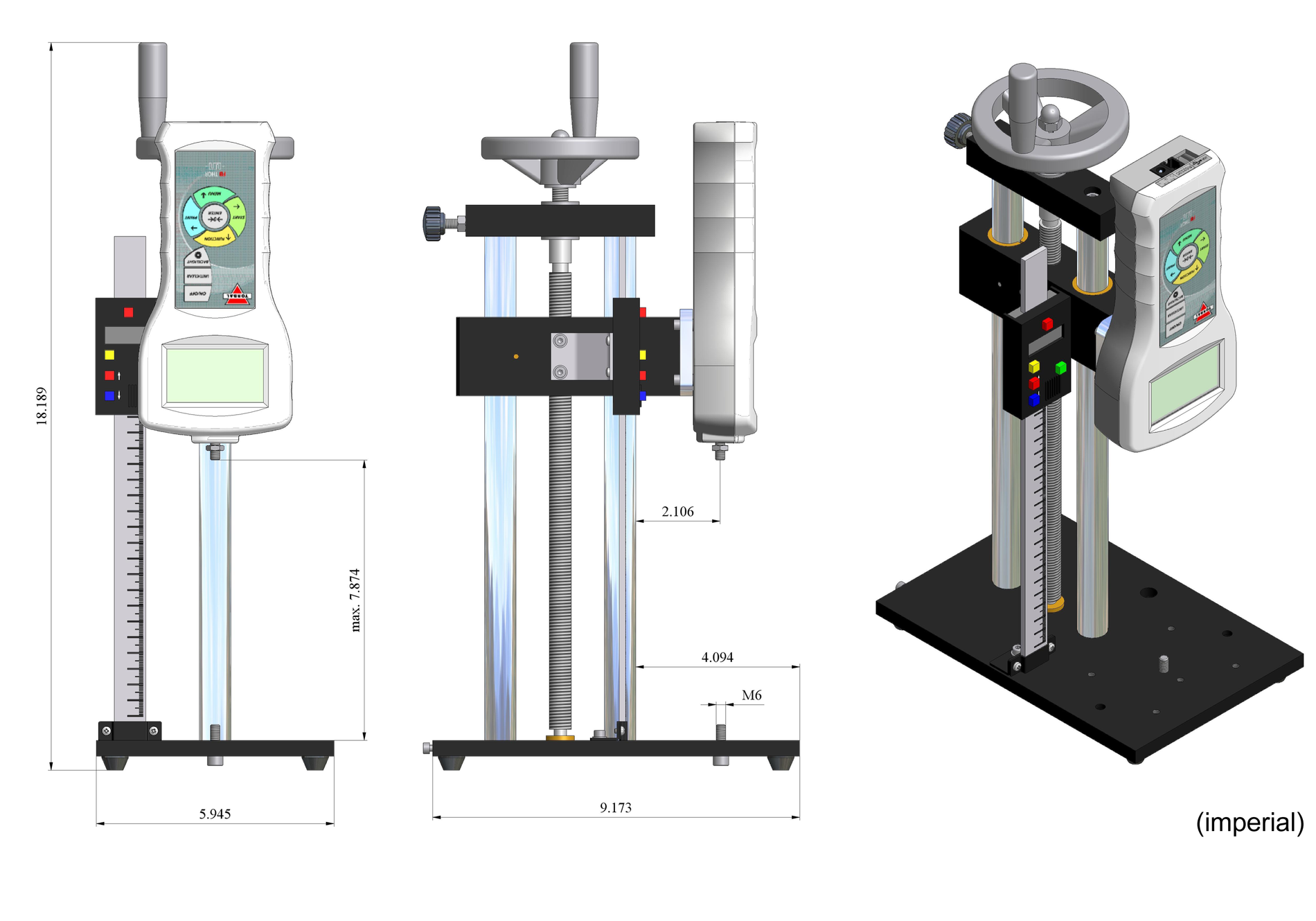

Stand Height (Excluding knob) 21.25” | 540mm
Stand Weight 19.40ls | 8.8kg
Warranty 12 Months
