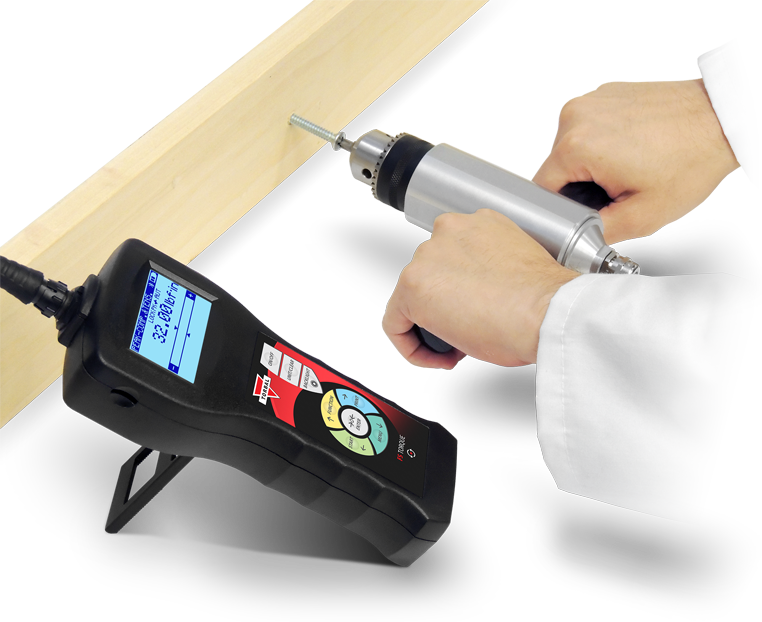

FSB TORQUE

Chuck Clamp

The FSB TORQUE ranges in capacity from 17lbF.in (2Nm) with a resolution of 0.01lbF.in (0.001Nm) to 100lbF.in (10Nm) with a resolution of 0.1lbF.in (0.01Nm). The FSB samples at a rate of 1000Hz and guarantees optimum precision and accuracy at all times. Measurements are automatically saved to the removable microSD memory card or can be easily sent via USB to a laptop or a PC. Powerful nickel–metal hydride batteries keep the gauge charged up to 16 hours. Standard, Peak, Multi-Peak, and Fill-Meter functions guarantee optimum functionality and flexibility when taking measurements. Every function includes statistical analysis, onscreen graphs, and a histogram. Analog I/O ports allows for threshold signaling and control of external peripherals.
