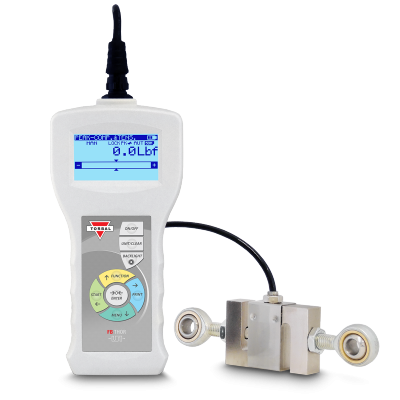

FB THOR

Precision Series

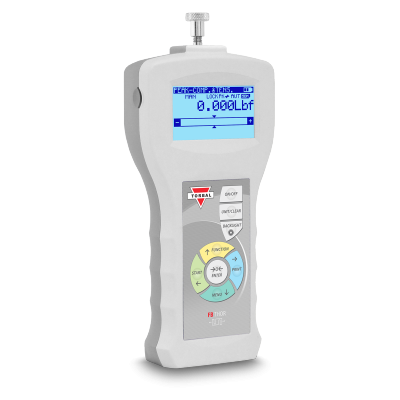

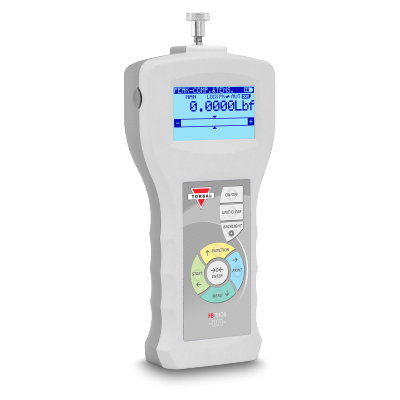

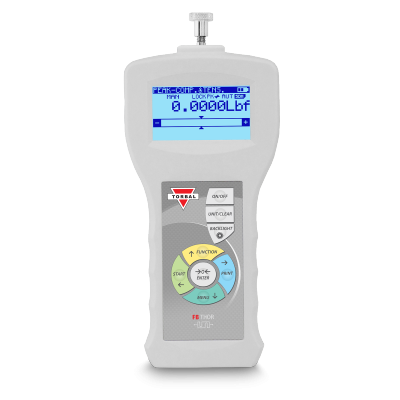

The FB series ranges in capacity from 1lbF (5N) with a resolution of 0.0002lbF (0.001N) to 10,000 lbF (50kN) with a resolution of 2lbF (10N). The FB is an affordable fully configurable force gauge designed for a wide range of tension and compression applications. No complicated configuration or setup, the force gauge is intuitive and easy to use with logically arranged user menus which allow for out-of-the-box use. The unit includes all essential force measuring modes such as Peak, Multi Peak, and Standard (Real Time). Easy-to-use Pass / Fail threshold settings makes the FB ideal for quality control applications. USB, RS232, and microSD allow for easy PC connectivity and measurement data management. The FB series is equipped with four powerful and easily removable batteries which keep the force gauge charged up to 32 hours. The force gauge is overload protected up to 200% at full scale, and equipped with a used-capacity-indicator which shows the amount of capacity used during force measurements.

High Resolution

FB5

1lbF x 0.0002lbF

5N x 0.001N
$ 499.00
Details

FB10

2lbF x 0.0005lbF

10N x 0.002N
$ 549.00
Details

FB20

4lbF x 0.001lbF

20N x 0.005N
$ 569.00
Details

FB50

10lbF x 0.002lbF

50N x 0.01N
$ 579.00
Details

FB200

40lbF x 0.01lbF

200N x 0.05N
$ 590.00
Details

FB500

100lbf x 0.02 lbf

500N x 0.1N
$ 599.00
Details

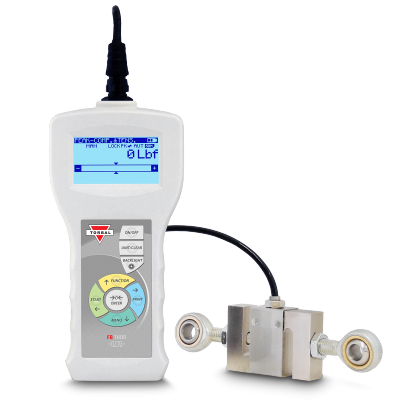

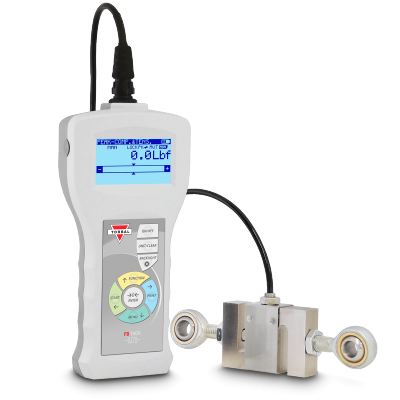

High Capacity

FB1k

200lbf x 0.05lbf

1kN x 0.2N
$ 699.00
Details

FB2k

400lbF x 0.1lbF

2kN x 0.5N
$ 799.00
Details

FB5k

1,000lbF x 0.2lbF

5kN x 1N
$ 849.00
Details

FB10k

2,000lbF x 0.5lbF

10kN x 2N
$ 899.00
Details

FB20k

4,000lbF x 1lbF

20kN x 5N
$ 1099.00
Details

FB50k

10,000lbF x 2lbF

50kN x 10N
$ 1199.00
Details

Recommended Accessories

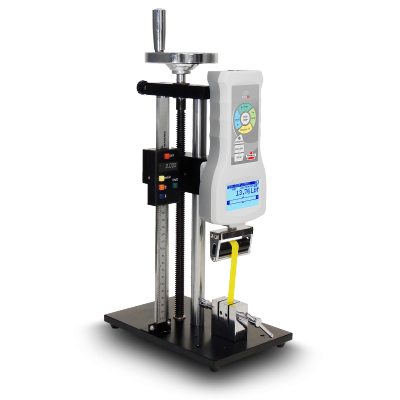

STV Test Stand

$ 749.00
Details

C-Clamp

$ 98.99
Details

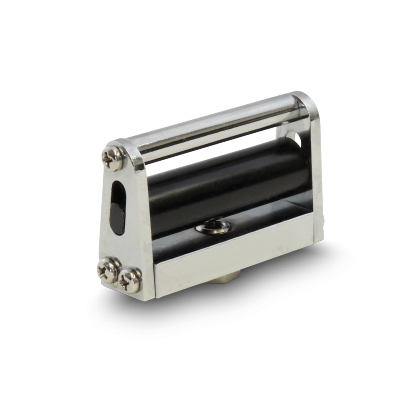

Roller Grip

$ 120.99
Details

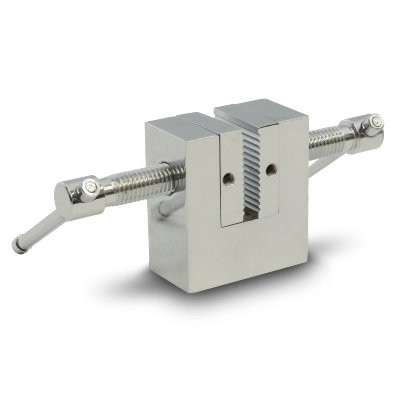

Hex Vise Clamp

$ 120.99
Details

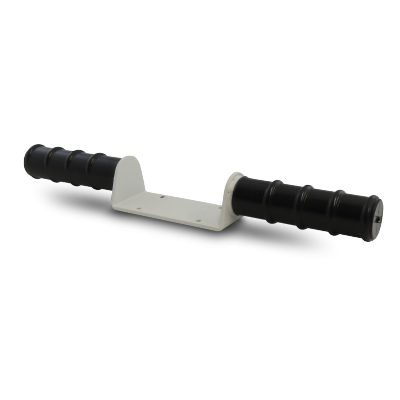

Two Grip Handle

$ 70.99
Details
